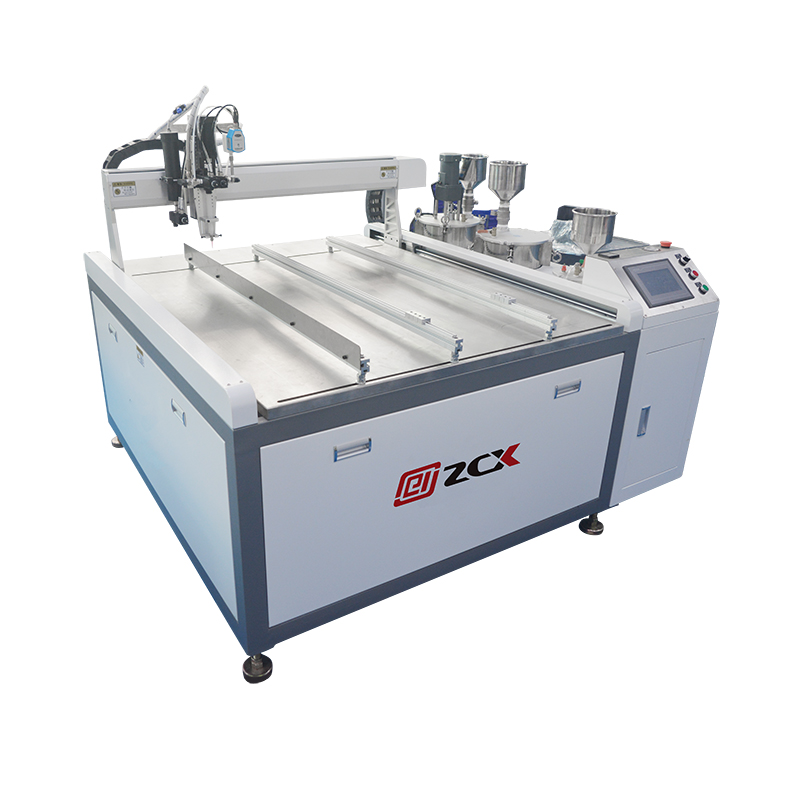

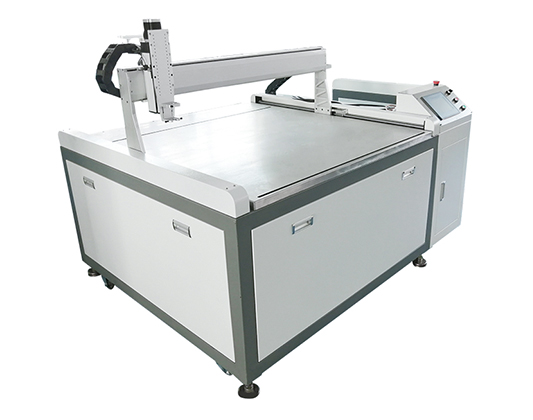

ZCX's SZ1000 Glue Potting Machine is a multipurpose and effective instrument intended for numerous industrial uses, such as label stickers, crafts, automobile filters, LED goods, and more. This machine is exceptional because of its accuracy and dependability, which guarantee top performance and excellent outcomes. The sophisticated dispensing system of the SZ1000 is one of its best attributes; it enables precise and reliable glue application, which is necessary for sensitive jobs like potting LED lights and vehicle filters. Because of its broad range of viscosity handling capabilities, the machine can be used with a variety of adhesive kinds across multiple sectors.
The SZ1000 offers remarkable control in the craft and label sticker sectors, enabling elaborate patterns and accurate placements. Its configurable settings and user-friendly interface make it simple to tailor operations to the demands of particular projects, increasing efficiency and productivity. Because of its sturdy design, which guarantees long-term use and durability, the machine is a dependable option for companies that prioritize fine details and ornamentation.
CE Certified
1-Year Warranty
Technical Support
LED products, car filters, crafts, label stickers etc.
| ITEM | ZCX-SZ1000 |
| Glue Mixing Ratio | 1:1-10:1/Customizable |
| Dispensing Speed | 10-150g/5s(based on 1:1 glue proportion) |
| Dispensing Precision | Glue Amount±1%, Glue Proportion±1% |
| X/Y/Z Working Range | 1000*1000*100mm |
| XYZ Speed | Max 300mm/s |
| Repeatability | ±0.05mm |
| Pattern | Lines, Circles, Arcs, Continuous Paths, 3D Linear Interpolation |
| Potting Precision | Amount±1%, Ratio:±1% |
| Input Pressure Range | 0.5-0.8MPa |
| Head Sealing Pressure | MAX≤2.6Mpa |
| Adhesive Viscosity | <10000CPS |
| Operation Method | Auto/Manual |
| Programming | Teach Pendant |
| Control | Smart control card+PLC+Touch Screen(Program setting, modify, save) |
| Leak-proof Function | Valve with Vacuum Device |
| Mixing System | High-speed Dynamic Mixing Device |
| Glue Injecting Control | High Precision Pump |
| Cleaning Tank Volume | 6L(304 Stainless Steel Material) |
| A Glue Tank Volume | 20L(304 Stainless Steel Material) |
| B Glue Tank Volume | 20L(304 Stainless Steel Material) |
| A Pump | High Precision Gear Pump(6-12CC) |
| B Pump | High Precision Gear Pump(0.6-2.4CC) |
| A Glue Tank Mixing System | Customize |
| B Glue Tank Mixing System | Customize |
| A Glue Heating System | Support |
| B Glue Heating System | Customize |
| Tank Vacuum Function | Customize |
| Dimension(L*W*H) | 1765*1380*1350mm |
| Power Supply | 220V 50Hz 3500W |
